Explosion-Proof (Hazardous Location Rating)

An explosion-proof rating means the device's enclosure is designed to:

Contain an Internal Explosion: If a spark from the device's internal components (e.g., the battery, circuitry) ignites flammable gases or dusts that have seeped inside, the enclosure is strong enough to contain the explosion without rupturing.

Prevent Ignition of External Atmosphere: The joints and flanges of the enclosure cool any hot gases escaping from inside so that they are not hot enough to ignite the surrounding flammable atmosphere.

Operate Safely at Surface Temperatures: The exterior of the device will not get hot enough to become an ignition source itself.

This is crucial in industries where flammable gases, vapors, liquids, or dusts are present.

Common Standards and Certifications:

ATEX (Europe): Directive 2014/34/EU. A device might be rated for Zone 1 (high risk) or Zone 2 (lower risk).

IECEx (International): A global certification system.

UL (North America): Class I, Division 1 (hazardous gases present normally) or Division 2 (hazardous gases present abnormally).

GB(China's standard system): GB 3836 series of standards.

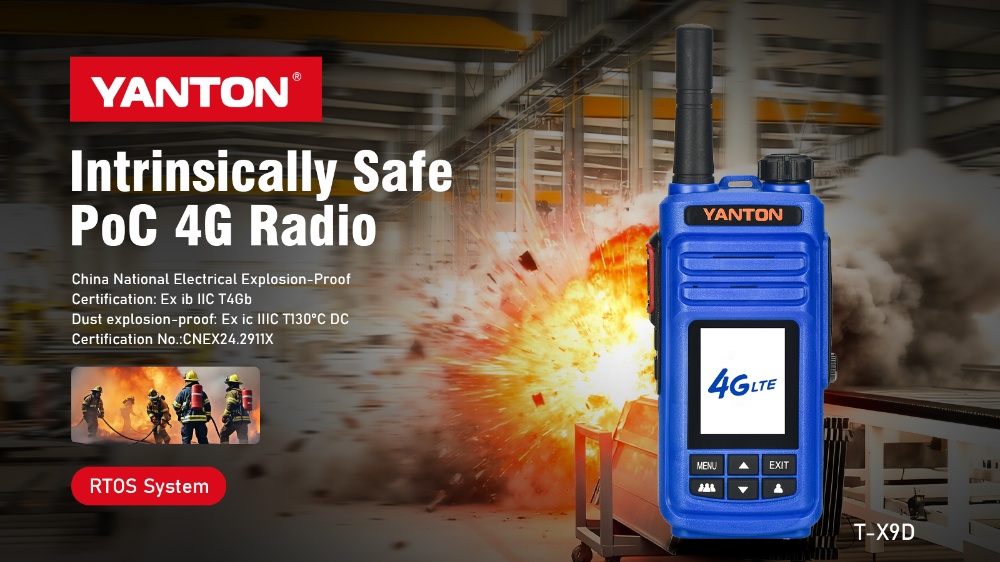

Explosion-Proof PoC Radio:

An Explosion-Proof PoC Radio is a rugged, wireless communication device that is:

1. Certified for use in hazardous environments (like oil refineries, chemical plants, grain silos, mining operations, paint booths, and gas utilities) where flammable substances are present.

2. Uses public cellular networks to provide instant push-to-talk voice communication, GPS location tracking, and data messaging over a very wide area.

It is essentially a professional-grade, intrinsically safe Smartphone /walkie-talkie hybrid built for the most dangerous workplaces.

Key Benefits and Use Cases:

Safety: The primary benefit. It allows for critical communication in volatile areas without being a source of ignition.

Extended Range: Workers on a large refinery site, pipeline right-of-way, or remote mining operation can stay connected far beyond the range of a traditional radio system.

Enhanced Coordination: Supervisors can instantly communicate with teams spread across different locations and track their precise GPS location for safety and efficiency.

Cost-Effective: Eliminates the need to build and maintain a private land mobile radio (LMR) network like a trunked radio system.

In conclusion, an explosion-proof PoC radio is a vital tool for ensuring both safe operation and effective communication in industries where the combination of explosive atmospheres and wide-area operations is a daily challenge.
